Centerless grinder

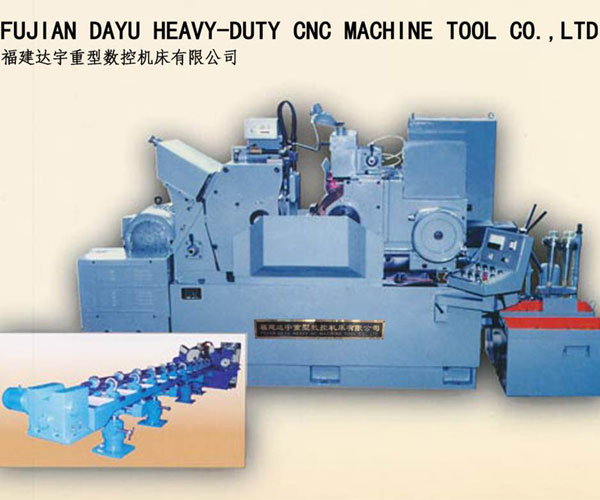

M10100 Centerless Grinder

The machine can be grinding cylindrical, cone and forming rotary parts and other parts, suitable for precision parts, mass production.


Main Specifications:

1,the maximum grinding workpiece diameter (standard bracket) 5 to 100 mm

2,the maximum grinding workpiece length

(1)through grinding (standard bracket) 250 mm

(2)cut into mill 190 mm

3,the maximum grinding weight of 5 kg

4,grinding wheel maximum size P600 × 200 × 305

Grinding wheel minimum size P400 × 200 × 305

5,the maximum specifications of the guide wheel PSA350 × 200 × 127

Guide wheel minimum size PSA280 × 200 × 127

6,grinding wheel speed 1010 r / min

7,guide wheel speed

(1)processing the workpiece 10 to 100 r / min

(2)when the guide wheel 200 r / min

8,the guide wheel in the vertical plane within the rotation -0.5 ~ +4.5 °

9,grinding wheel and guide wheel dresser

(1)in the role of the surface rotation angle (wheel dresser) 0 ~ 3 °

(2)of the vertical action in-plane rotation angle of 0 ~ 5 °

(3)Profile plate profile height ± 10 mm

10,bracket

(1)± 2.5 ° in the horizontal plane

11,cut into the feeding mechanism maximum movement of 5 mm

12,dresser dial per turn of a grid of feed 0.01 mm

13,grinding wheel and guide wheel center connection to the bracket positioning surface distance of 260 mm

14,the hydraulic system working pressure 0.6Mpa

15,hydraulic pump flow 10 liters / min

16,grinding machine lubrication pump flow of 2.5 liters / min

17,cooling pump flow 100 liters / min

18,the motor power:

(1)grinding wheel motor 18.5 kilowatts

(2)guide wheel motor 4 kW

(3)hydraulic pump motor 0.55 kilowatts

(4)lubrication pump motor 0.12 kW

(5)Cooling pump motor 1.1 kW

19,machine dimensions (length × width × height) 2850 × 1725 × 1630

20,machine tool weight 5500 kg
